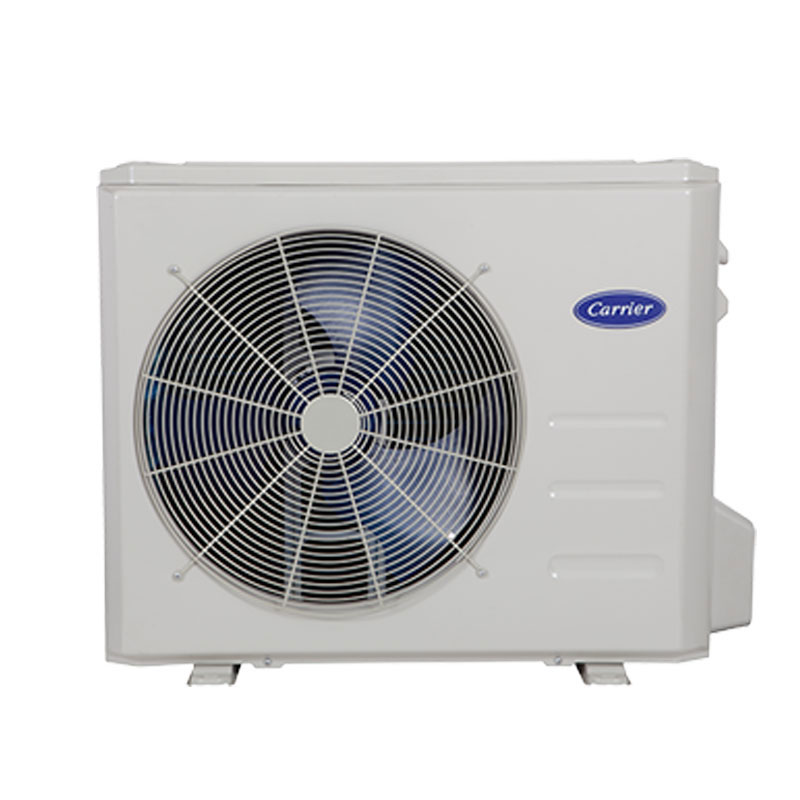

PERFORMANCE™ HEAT PUMP WITH BASEPAN HEATER 38MAR
Designed for versatility and year-round comfort, the 38MAR achieves full heating capacity even as temperatures outside dip to 5° F (with the right combination of model size and matched indoor unit). This quiet, compact heat pump pairs with a variety of indoor units for a budget-friendly and flexible solution to your duct-challenged comfort needs. Part of our PerformanceTM Series, this model really delivers with features like variable speed operation for extra efficiency and reduced sound.
- 100% Heating Capacity at 5° F (-15° C)
- Inverter Compressor
- Up to 25.0 SEER cooling efficiency
- Up to 12.0 HSPF heating efficiency
- Available in 115V and 208/230V
- Built-in basepan heater
- Piping length 82-164′ depending on unit capacity
- Refrigerant leakage detection
- Condenser high-temperature protection
- Quiet outdoor sound operation, as low as 52.5 decibels
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
EFFICIENCY
- Up to 25.0 SEER
- Up to 15.0 EER
- Up to 12.0 HSPF
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
PERFORMANCE
- Outdoor sound: as low as 52.5 decibels
OUTDOOR OPERATING RANGE
- Cooling mode Min-Max DB: Range is -4° ~ 122° F (-20° ~ 50° C)
- Heating mode Min-Max DB: Range is -22° ~ 86° F – Sizes 9-24 (208/230V) -4° ~ 86° F (-20° ~ 30° C) – Sizes 9, 12 (115V) & 30, 36 (208/230V)
LINE LENGTH
- Up to 164′
TECHNOLOGY
- Inverter Compressor
CAPACITIES
- 0.75 – 3 tons
REQUIREMENTS
- 0.75 – 1 ton 115V
- 0.75 – 3 tons 208/230V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
